Marine Grade Aluminum 5083 Sheet

Marine grade aluminum 5083 sheet is really a very common aluminum sheet material used in shipbuilding. The alloy composition of marine grade aluminium 5083 gives it excellent resistance to corrosion and rust, which is crucial for structures like ships that are exposed to water for long periods of time. Marine grade aluminium 5083 sheet commonly used in shipbuilding is usually available in sizes ranging from 1.5 to 30mm, and this thickness is able to meet the hull structure's needs for strength and corrosion resistance. H111, H116, and H321 are common choices for the condition of marine grade aluminum sheet 5083 used in shipbuilding. These states correspond to different processing and heat treatment methods, thus giving the 5083 aluminum sheet different performance characteristics.

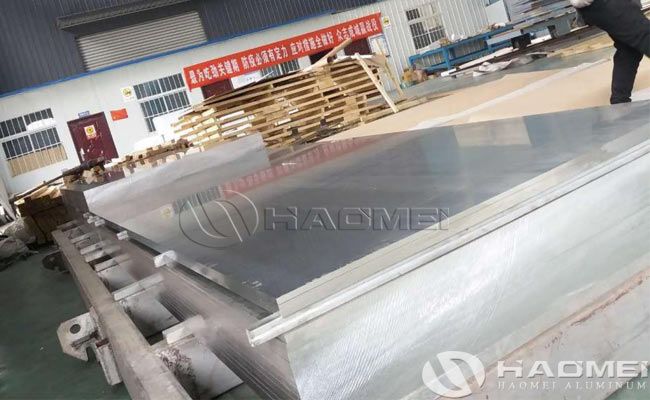

marine grade aluminum 5083 sheet

Marine grade aluminum 5083 sheet belongs to the Al-Mg system of alloys, 5083 aluminum alloy chemical composition mainly includes aluminum (Al), magnesium (Mg), manganese (Mn), chromium (Cr), titanium (Ti), copper (Cu), iron (Fe) and silicon (Si) and other elements. Specifically, aluminum is the main component, while magnesium is present in the range of 4.0% to 4.9%, which is the key alloying element of marine grade aluminium 5083 alloy, giving it excellent corrosion resistance, weldability and moderate strength. The content of manganese is between 0.4% and 1.0%, while the content of chromium is between 0.05% and 0.25%. In addition, the content of titanium should be less than 0.15%, copper should be less than 0.1%, iron should be less than 0.4%, and silicon should be less than 0.4%. The combined content of the other elements should be less than 0.15%. The combined effect of these alloying elements makes marine grade aluminum sheet 5083 with low density, high strength, good corrosion resistance and weldability and other excellent characteristics, so it is widely used in shipbuilding, marine engineering, automotive and other fields. In the shipbuilding industry, marine grade aluminium sheet 5083 is often used in the hull structure, ship bottom, cabin and other parts of the ship due to its excellent corrosion resistance. Its resistance to rust also ensures that the vessel maintains a better appearance and structural integrity over a long period of time.

Marine grade aluminium 5083 sheet for shipbuilding requires classification society certification to ensure that its quality and performance meets the relevant standards and requirements. Classification societies (e.g. DNV, CCS, ABS, RINA, LR, KR, BV, etc.) are organizations that carry out technical inspections and issue certificates for ships and offshore installations. marine grade aluminum 5083 sheet, as a shipbuilding material, needs to comply with the standards and specifications of the classification societies and be certified by them. Classification society certification usually involves rigorous testing and evaluation of the material composition, mechanical properties, corrosion resistance and other aspects of the aluminum plate.

Overall, marine grade aluminum 5083 sheet has a wide range of applications in the shipbuilding industry due to its excellent corrosion and rust resistance.
