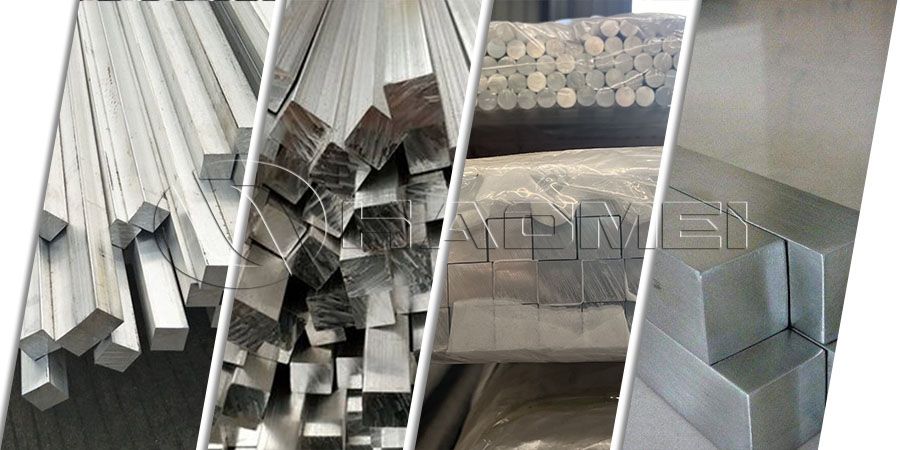

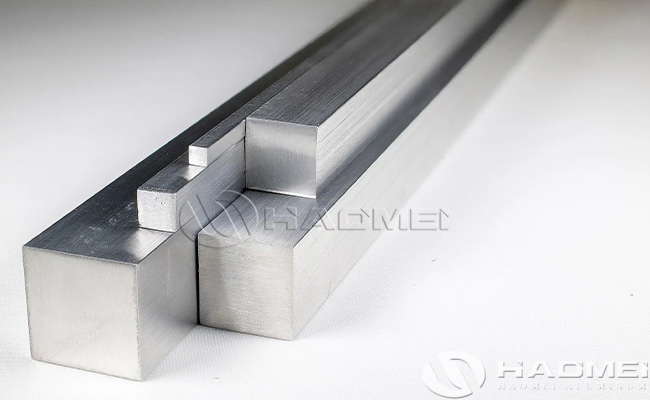

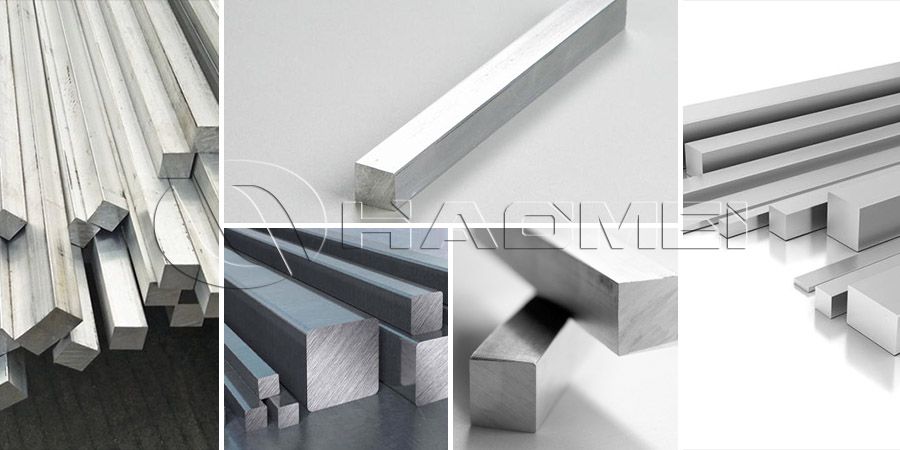

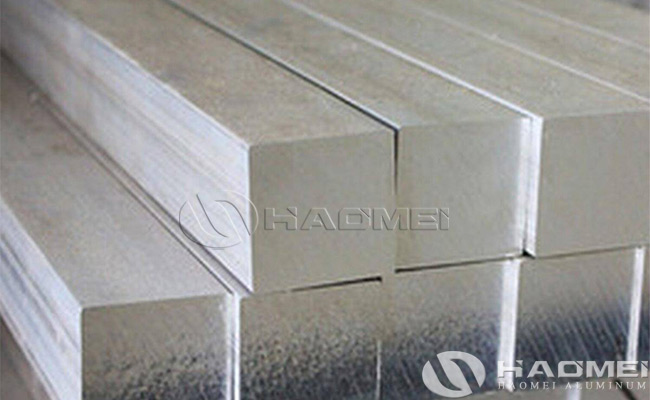

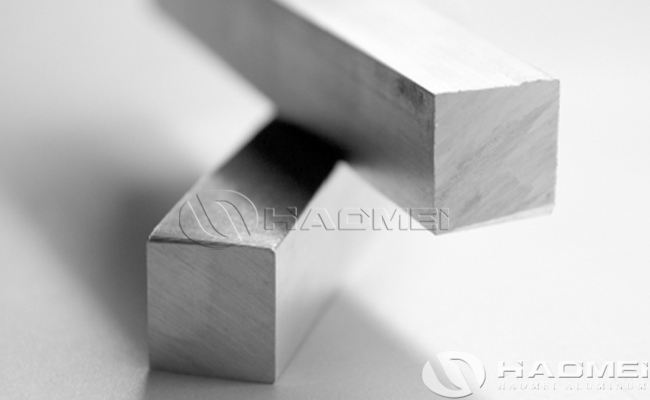

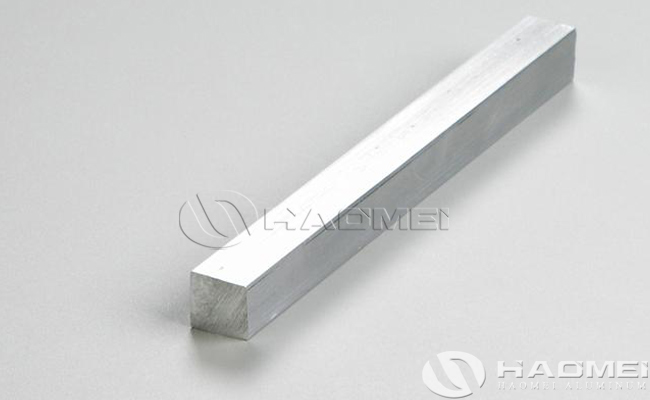

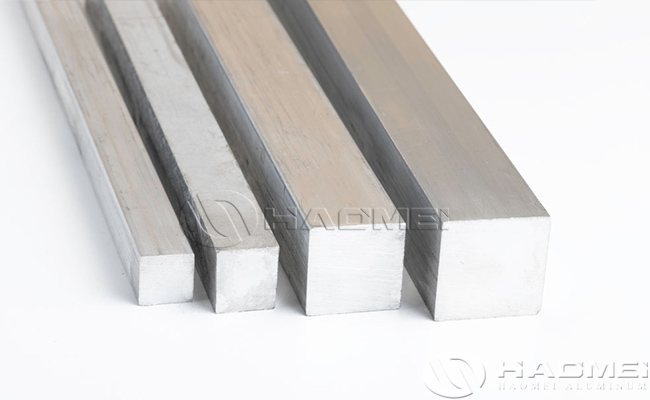

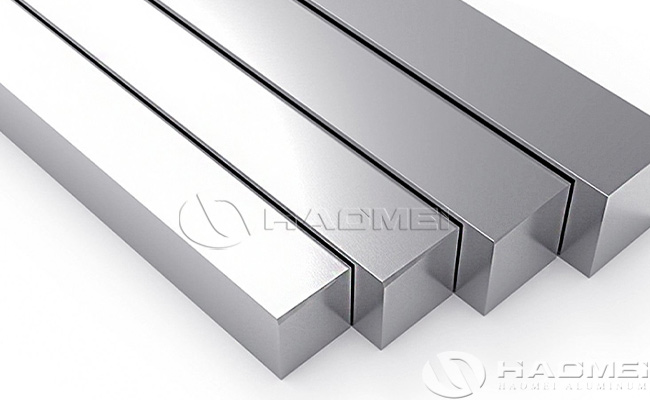

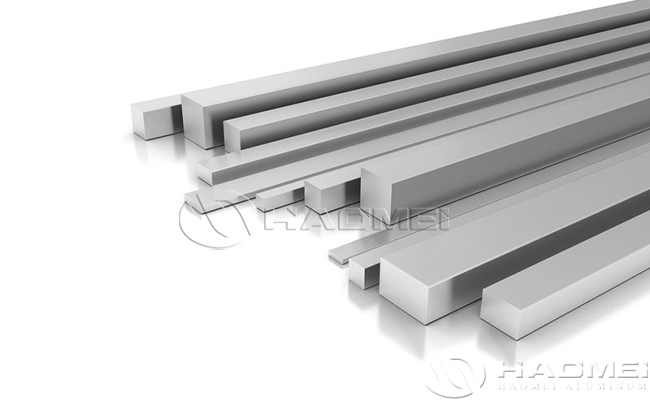

Aluminium Square Bar
- Alloy:6061/6082
- Temper: T6
- Side Length: 10 -220mm
- Normal Length: 3000mm, 4000mm, 6000mm
- Introduction
- Feature
- Application
- Pictures
- Video
- Download
Aluminum square bars are a core component of many structural parts. Their shape is perfect for a wide variety of uses. 6061-T6 Aluminum square bars are also great alternatives to the use of heavier metals like steel since aluminum is incredibly lightweight. Additionally, aluminum is highly corrosion-resistant, and 6061 aluminum is especially versatile and heat-treatable.
Specs of Aluminium Square Bar:
Alloy | 6061/6082 |
Temper | O, T4, T3511, T6, T8511 |
Side length mm | 10 -220mm |
Normal length | 3000mm, 4000mm, 6000mm |
Standard | GBT 26006-2010, EN 755, EN754 |
aluminum square rod metric size range | Min10x10mm，Max220x220mm |
aluminum square rod inch size range | Min0.375"x0.375"，Max9"x9" |
aluminum square rod length | Max 6m, Fix & Cut Length or Customized |
Surface treatment | Anodizing, electrophoretic coating, powder coating, etc. |
Production Process | Cold finish, Extruded |
Commonly used sizes:8x8mm、10x10mm、12x12mm、14x14mm、15x15mm、16x16mm、18x18mm、20x20mm、22x22mm、25x25mm、28x28mm、30x30mm、32x32mm、35x35mm、40x40mm、45x45mm、50x50mm.
Aluminum Square Bar Physical Properties:
6061-T6 | 6061-T651 | 6061-T6511 | |
Tensile Strength | 270-310 MPa | 270-320 MPa | 270-290 MPa |
Shear Strength | 210MPa | 210 MPa | 170MPa |
Elastic Modulus | 69GPa | 69GPa | 69GPa |
Brinell Hardness | 93 | 93 | - |
Elongation at Break | 10% | 11% | 9% |
Why Choose Haomei Aluminum?
- Specialization: We excel in providing top-grade marine grade aluminum profiles.
- Diverse Options: Explore a variety of other grades to suit your specific project requirements.
- Value-added Services: Benefit from efficient sourcing, quick turnaround, and services like precision saw cutting for seamless project integration.
- Reliability: As your trusted aluminum profile distributor, we are committed to meeting your needs promptly and efficiently.
- Certified: Haomei Aluminum is an ISO-certified, CCS,DNV, LR, KR, BV, RINA, and ABS cerificated, family-owned, and operated provider of high-quality specialty metals and alloys.
Characteristics of Aluminum Square Bar:
Excellent corrosion resistance
Heat-treatable
Excellent welding capabilities
Good machinability
Excellent strength-to-weight ratio

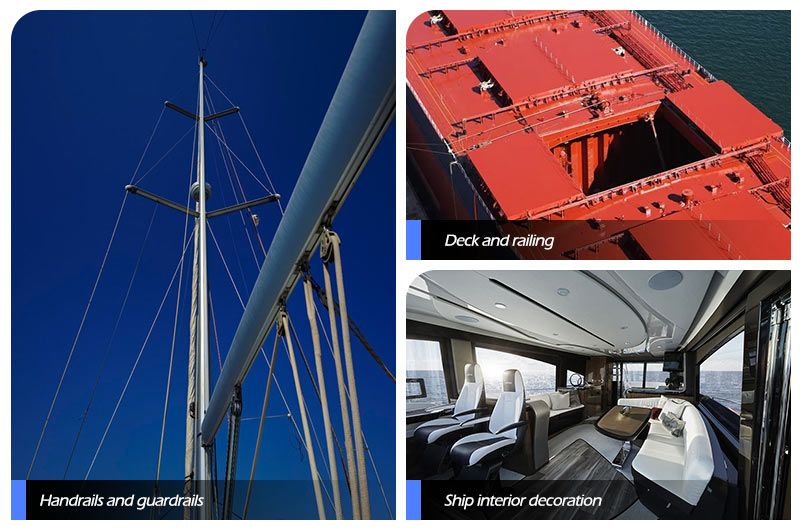

Application of Aluminum Square Rod:
- Structural support: aluminum square rods can be used to manufacture structural support materials for the hull, such as masts, beams, support columns, etc. Its high strength and corrosion resistance make it ideal for hull construction.
- Deck and railing: aluminum square bars can be used to manufacture ship decks and railings. Its lightweight nature makes the hull more stable and able to bear the weight of the crew and equipment.
- Handrails and guardrails: aluminum square bars can also be used to make handrails and guardrails on ships. They provide extra security and support, while also resisting saltwater erosion and harsh environmental conditions.
- Ship equipment bracket: aluminum square rod can be used to manufacture various ship equipment brackets, such as steering gear brackets, navigation equipment brackets, etc. Its strength and rigidity ensure secure installation and proper operation of equipment.
- Ship interior decoration: aluminum square rod can also be used for decoration and design of ship interior. It has beautiful appearance and strong corrosion resistance, and can be used to make handrails, lamp brackets, storage racks, etc.
 |
