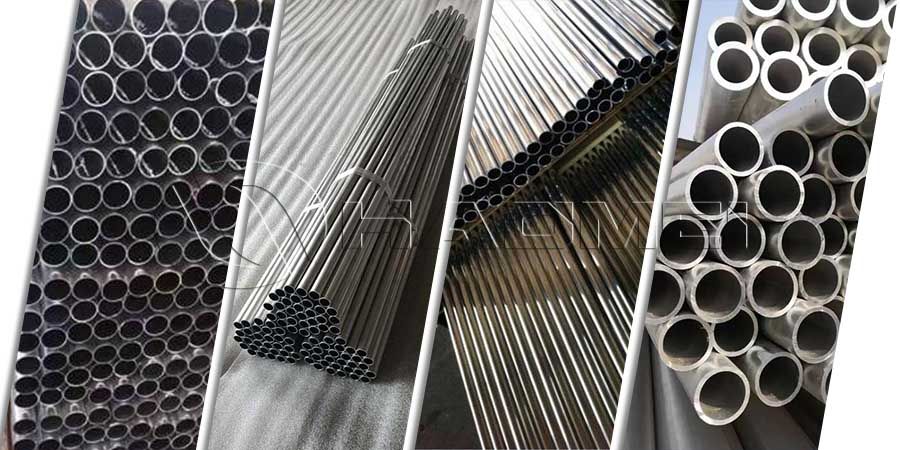

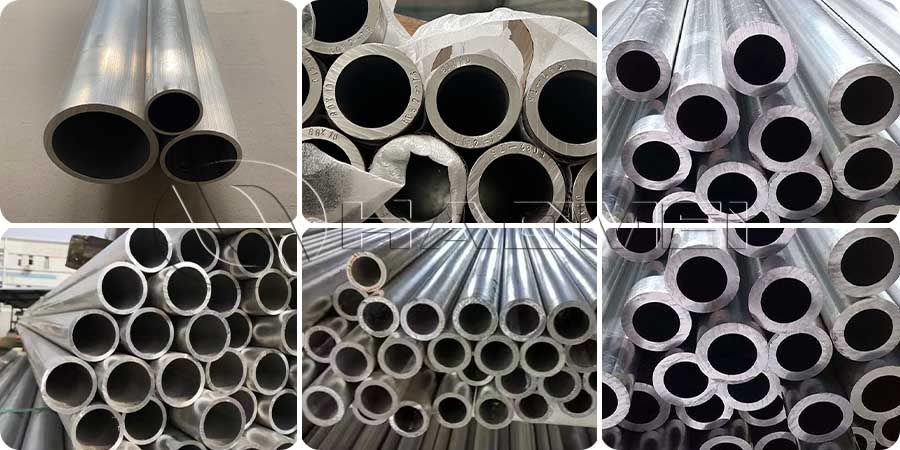

Aluminum Round Tube/Pipe
- Alloy:6061, 6082, 6086
- Temper: T6
- OD:1-13.5 inches
- Length:288 inches
- Introduction
- Feature
- Application
- Pictures
- Video
- Download
The round tubes/pipes are available in the following aluminum alloy: 6061,6082, 6086. The 6000 series aluminum round tube is a readily machinable and weldable product. It is made with silicon and magnesium. This heat treated aluminum has the highest corrosion resistance in its class, but is less strong than other heat treated aluminum alloys. This is why it’s widely used in various industries. The applications is commonly used for marine components. It can also be used for heavy duty structures that need metals with high resistance to corrosion and good strength-to-weight ratios.
This product can be hardened using heat treatment. When in the annealed condition, 6061 aluminum alloys can be cold worked using standard methods. This enables it to be drilled, stamped, cut, bent, tapped and deep drawn. 6061 aluminum grades can be welded using any of the common methods.
Specification of Extruded Aluminum Round Tube:
Size Range OD (mm) | Wall Thickness (mm) |
8-150mm | 0.5-20mm |
Pipe Size Designation | Schedule Number | Outside Dia (inches) | Inside Dia. (inches) | Approx.Wt. (Ibs./lineal ft.) |
1/2 | 40 | 0.84 | 0.622 | 0.294 |
80 | 0.84 | 0.546 | 0.376 | |
3/4 | 40 | 1.05 | 0.824 | 0.391 |
80 | 1.05 | 0.742 | 0.51 | |
1 | 40 | 1.315 | 1.049 | 0.581 |
80 | 1.315 | 0.957 | 0.751 | |
1–1/4 | 40 | 1.66 | 1.38 | 0.786 |
80 | 1.66 | 1.278 | 1.037 | |
1–1/2 | 40 | 1.9 | 1.61 | 0.94 |
80 | 1.9 | 1.5 | 1.256 | |
2 | 10 | 2.375 | 2.157 | 0.913 |
40 | 2.375 | 2.067 | 1.264 | |
80 | 2.375 | 1.939 | 1.737 | |
2–1/2 | 40 | 2.875 | 2.469 | 2.004 |
80 | 2.875 | 2.323 | 2.65 | |
3 | 40 | 3.5 | 3.068 | 2.621 |
80 | 3.5 | 2.9 | 3.547 | |
3–1/2 | 40 | 4 | 3.548 | 3.151 |
80 | 4 | 3.364 | 4.326 | |
4 | 40 | 4.5 | 4.026 | 3.733 |
80 | 4.5 | 3.826 | 5.183 | |
5 | 40 | 5.563 | 5.047 | 5.057 |
80 | 5.563 | 4.813 | 7.188 | |
6 | 40 | 6.625 | 6.065 | 6.564 |
80 | 6.625 | 5.761 | 9.884 | |
8 | 40 | 8.625 | 7.981 | 9.878 |
80 | 8.625 | 7.625 | 15.01 | |
10 | 40 | 10.75 | 10.02 | 14.004 |
Why Choose Haomei Aluminum?
- Specialization: We excel in providing top-grade marine grade aluminum profiles.
- Diverse Options: Explore a variety of other grades to suit your specific project requirements.
- Value-added Services: Benefit from efficient sourcing, quick turnaround, and services like precision saw cutting for seamless project integration.
- Reliability: As your trusted aluminum profile distributor, we are committed to meeting your needs promptly and efficiently.
- Certified: Haomei Aluminum is an ISO-certified, CCS,DNV, LR, KR, BV, RINA, and ABS cerificated, family-owned, and operated provider of high-quality specialty metals and alloys.
Features of 6061 T6 aluminum round tube:
- High Strength: 6061-T6 aluminum offers good strength-to-weight ratio, making it suitable for structural applications where strength is critical.
- Excellent Weldability: This alloy can be easily welded using various techniques, including TIG (tungsten inert gas), MIG (metal inert gas), and resistance welding, allowing for the fabrication of complex structures.
- Corrosion Resistance: 6061-T6 aluminum exhibits excellent resistance to corrosion, particularly in environments where it is exposed to moisture and other corrosive elements.
- Machinability: While aluminum in general is known for its excellent machinability, 6061-T6 is particularly easy to machine, allowing for precise shaping and finishing.
- Versatility: Due to its combination of strength, lightweight nature, and corrosion resistance, 6061-T6 aluminum round tubes find applications across various industries, including aerospace, automotive, marine, construction, and recreational equipment.
- Anodizing Capability: The 6061 alloy can be easily anodized to enhance its surface properties, such as hardness and corrosion resistance, as well as to provide decorative finishes.
- Heat Treatable: 6061-T6 aluminum can be heat-treated to further enhance its mechanical properties, such as tensile strength and hardness, making it suitable for demanding applications.
Application of aluminum round tube:
- Marine: Utilized for boat frames, masts, railing, and other marine components due to its resistance to corrosion in saltwater environments.
- Construction: Used in construction applications such as scaffolding, handrails, and support structures due to its strength, durability, and corrosion resistance.
- Industrial Equipment: Used in the fabrication of industrial machinery, conveyor systems, and equipment frames due to its strength, machinability, and corrosion resistance.
 |
